Book 2: Petrol Engine Actuators
The completely revised and extended new edition of Volume 2 "Petrol Engine Actuators" from the series "Signals in Images" has been published.
The 2nd Edition comprises 100 pages covering all Petrol Engine Actuators. The contents describe reference and erroneous signals, options for connecting-up test equipment, the respective vehicles and systems, as well as the appropriate reference values for the following components:

- lambda probes
- injector valves
- injectors for direct-injection systems
- fuel-pressure regulators direct-injection systems
- various idle-adjusters for different systems
- camshaft adjustment BMW, Ford, Fiat
- secondary-air injection
- electric coolant pumps
- electrical fuel pumps
- magnetic valves for oil pressure control
- bypass valve turbocharged engines
- exhaust gas recirculation
- injection systems for all vehicle manufacturers
- etc.
Volume 2 "Petrol Engine Actuators" complements Volume 1 "Petrol Engine Sensors", which deals extensively with sensor signals. Furthermore, this book is part of the multi-volume series "Signals in Images".
This manual is a good source of help in supporting day-to-day error diagnosis. It is ideal for training centers, apprentices and advanced training. For garages and workshops, interested in keeping up-to-date, this manual is a must have. With its contents and approach, it complements other, already available reference books.
The manual is an excellent companion in error diagnosis. The contents describe, in short, the functionality of individual actuators using drawings and connection-diagrams and provide typical reference values for individual components.
Preview

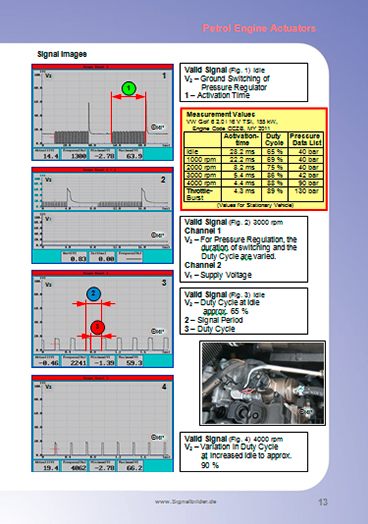

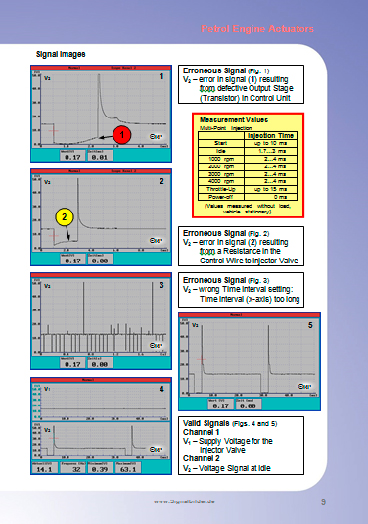

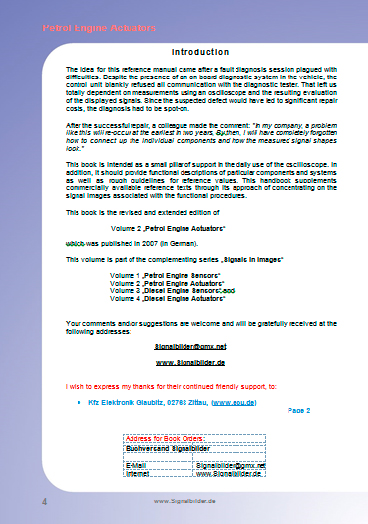

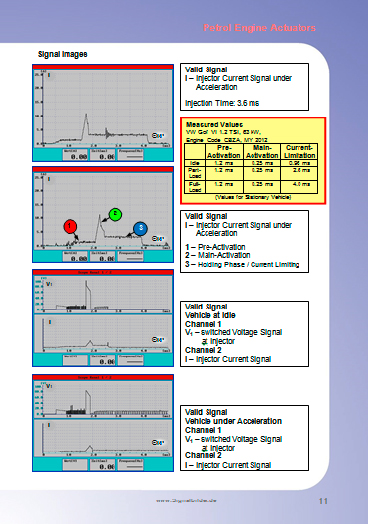

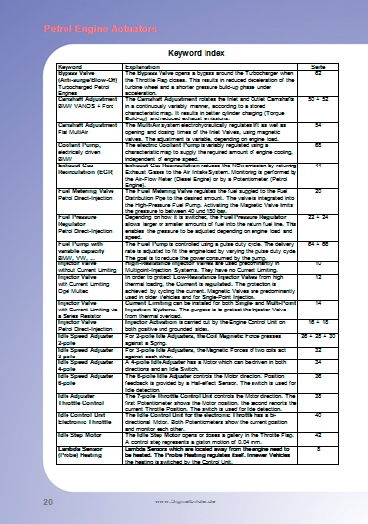

Browse the first 15 pages of Volume 2 "Petrol Engine Actuators".

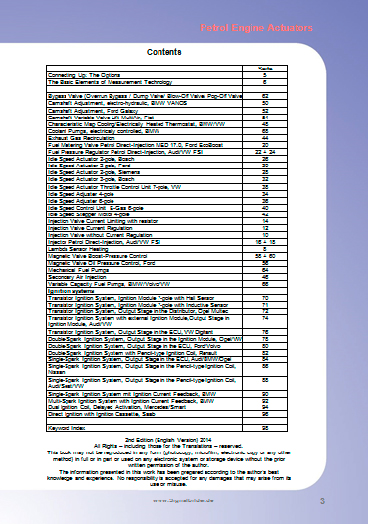

Contents
This book contains information about the following components:
- options for connecting-up
- categories of measurement
- exhaust gas recirculation
- injector valve current limiting with resistor
- injector valve with current regulation
- injector valve without current regulation
- injector valve, petrol direct-injection, Audi/VW FSI
- fuel metering valve, petrol direct-injection MED 17.0, Ford EcoBoost

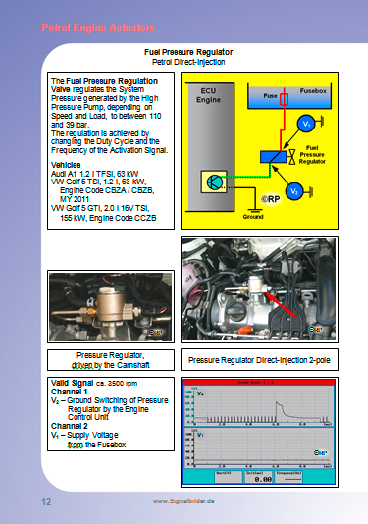

- fuel pressure regulator, petrol direct-injection, Audi/VW FSI
- characteristic map cooling / electrical coolant thermostat, BMW/VW
- fuel pumps mechanical
- fuel pump with variable capacity, BMW/Volvo/VW
- coolant pump, electrically controlled, BMW

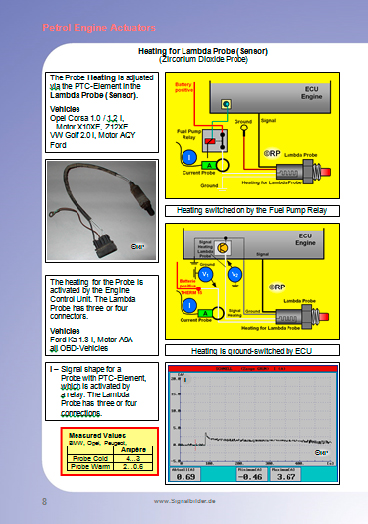

- lambda probe heating
- idle speed actuator 2-pole, Bosch
- idle speed actuator 2-pole, Siemens
- idle speed actuator 2-pole, Ford
- idle speed actuator 3-pole, Bosch
- idle speed adjustor 4-pole
- idle speed adjustor 6-pole
- idle speed actuator throttle control unit 7-pole, VW
- idle speed control unit E-Gas 6-pole
- idle speed stepper motor 4-pole
- magnetic valve oil pressure control, Ford
- magnetic valve boost-pressure control
- camshaft adjustment, electro-hydraulic, BMW VANOS
- camshaft adjustment, Ford Galaxy
- camshaft variable valve lift, MultiAir, Fiat
- secondary air injection
- bypass valve petrol injection (Schubumluftventil)
- ignition systems
- transistor ignition system, ignition module 7-pole with Hall sensor
- transistor ignition system, ignition module 7-pole with inductive sensor
- transistor ignition system, output-stage in the distributor, Opel Multec
- transistor ignition system with external ignition module, output-stage in ignition module, Audi/VW
- transistor ignition system, output-stage in the ECU, VW Digifant
- double-spark ignition system, output-stage in the ignition module, Opel/VW
- double-spark ignition system, output-stage in the ECU, Ford/Volvo
- double-spark ignition system with pencil-type ignition coil, Renault
- single-spark ignition system, output-stage in the ECU, Audi/BMW/Opel
- single-spark ignition system, output-stage in the pencil-type ignition coil, Nissan

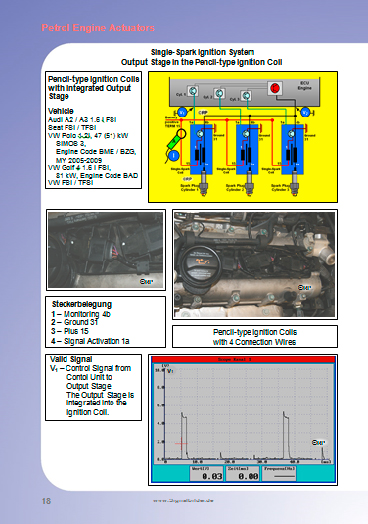

- single-spark ignition system, output-stage in the pencil-type ignition coil, Audi/Seat/VW
- single-spark ignition system with ignition current feedback, BMW
- multi-spark ignition system with ignition current feedback, BMW
- dual ignition coil, delayed activation, Mercedes/Smart
- direct ignition with ignition cassette, Saab
ISBN-10: 3-00-019043-0
ISBN-13: 978-3-00-019043-8
The diagnostic system mega macs from Hella Gutmann Solutions GmbH was used exclusively in the preparation of the many oscilloscope images.
